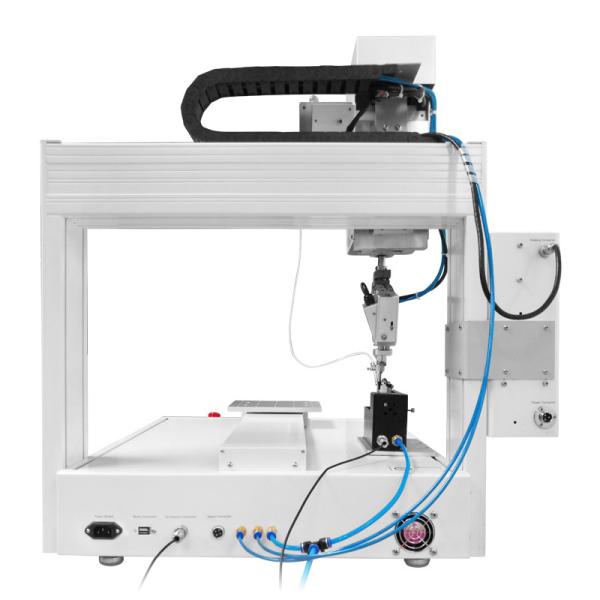

Module Solder Robot Automatic with Controlled Temperature, Solder Robot
Features :
1. Applicable for different products, soldering temperature can be set freely.
2. The heating system adopts Weller heater and soldering tip. The consumble parts are low cost.
3. The solddering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.
4. Numerically controlled temperature (static air condition: ±1℃)
5. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.
6. In the soldering process, the solder tip has rapid heat recovery and a long life span.
Product Detail:
It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.
Specifications:
| Model | S515 |
| Voltage | 110V / 220V |
| Heating Power | 150W |
| Preheating Temperature Range | 0℃~500℃ |
| Axis | 4 |
| Operating Range (X * Y * Z) | 400 x 400 x 100mm |
| Movement Speed | X * Y Axis: 0.1~600mm/sec, Z Axis :0.1~400mm/sec |
| Repeat Positioning Accuracy | ±0.002mm |
| Resolution | 0.01mm |
| Maximum Load Weight | 8kg (for work platform) |
| Solder Wire Diameter | 0.5, 0.6, 0.8, 1.0, 1.2 (mm) |
| Demo File Capacity | ≤999files, max 1994 points for each file |
| Program Capacity | max 255 programs |
| Operate Temperature | 0℃~40℃ |
| Operate Humidity | 20~90% |
| External Dimensions | 720mm x 700mm x 810mm |
| Weight | about 66kgs |
Function Introduction:
1. With perfect soldering process settings, it has point soldering and slide soldering functions. The tin feeding speed can be automatically adjusted according to the working speed.
2. It can support the input of DXF files, which saves the intricate manual teaching, convenient and accurate.
3. It can support the positioning by Double Mark Points, which can eliminate the inaccuracy caused by the angle or position error of the product placed on the fixture.
4. With functions such as area array copy, translation computation, batch modification, single step, fully automatic and circulating operation, I/O input and output, etc.
Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
