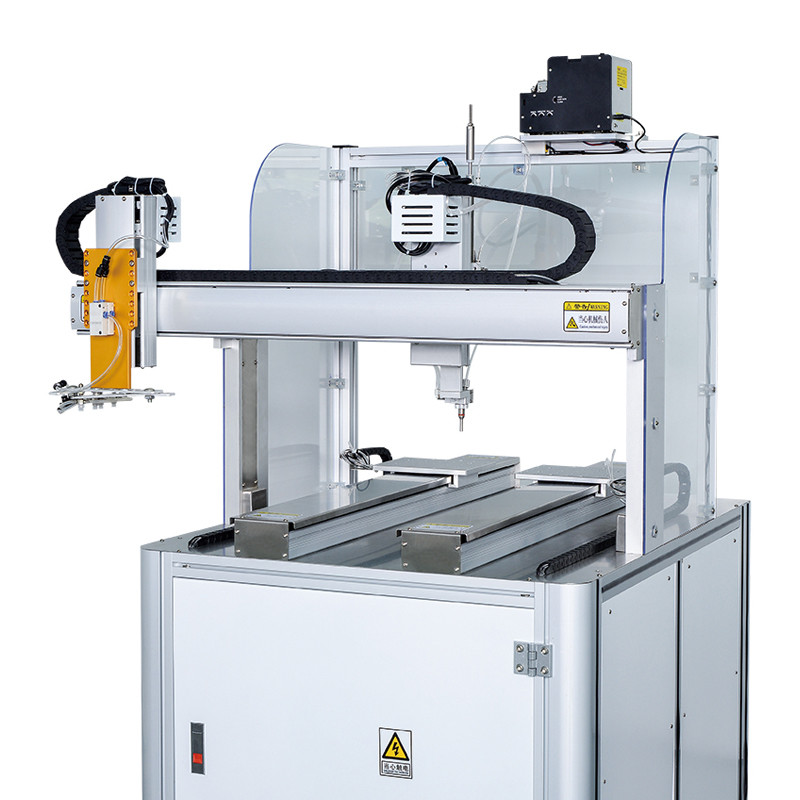

Automatic counting screw machine for mobile phone assembly; automatic screw machines
Description:
It is an automated equipment that can replace manual screw locking.
As the production cost of enterprises is getting higher and higher, labor costs are rising, and automatic screw machines will replace most of the screw locking stations, which are simple to operate, convenient to use, and efficient.
Features:
◆Simple replacement of molds and accessories, can be used for other products;
◆Using double-track structure, wear-resistant and long working life;
◆Using brushless electric batch, it has the advantages of less heat generation, long life, environmental protection, etc.;
◆With intelligent detection function, it can detect missing locks, symbol locks, sliding teeth, etc.;
◆Dual Y-axis design, alternate operation, manual product release time is excluded from the total production time, to maximize production efficiency.
◆Mainly used for electronic products, such as toys, remote controls, power strips, etc.
◆Applicable screw range: M2.3-M6, length 8-30mm
Specification:
| Type | WT-7026-2Z |
| Locking screw range | X260 * Y1/700 * Y2/700 * Z135mm(double Z) |
| Screw time | 1.0~1.2s/piece |
| Repeat accuracy | ±0.02mm |
| Program record mode | 15 files, each file can save up to 99 points |
| Control system | SCM + Touch Screen |
| Air source | 0.4-0.6MPA |
| Movement speed | X/Y Axis: ≤500mm/s,Z Axis: ≤300mm/s. |
| Applicable screw size | M1.5-M4(screw length not exceed 16mm) |
| Dimension | 1100 x 800 x 1620mm |
| Weight | 120kg |
Competitive Advantage:
We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc.Waterun owns two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
