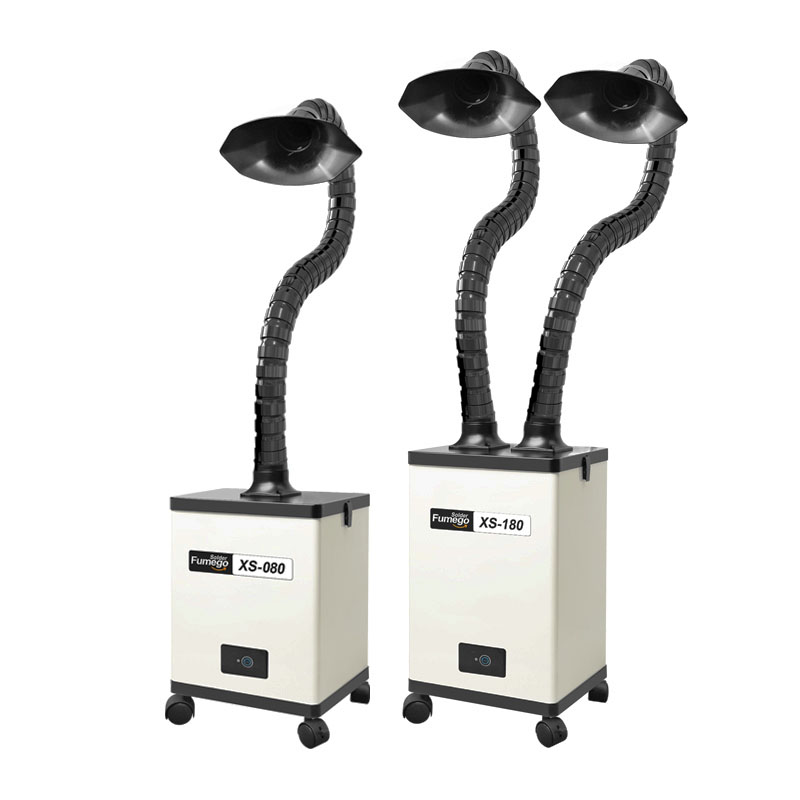

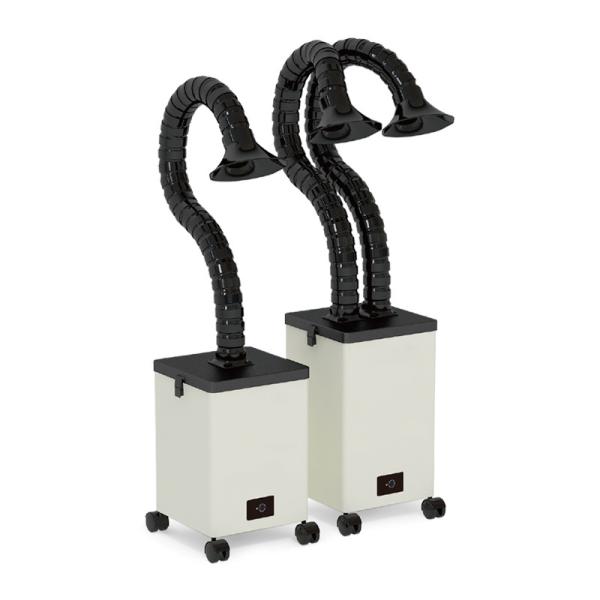

99.97% Purification Rate Brushless Motor Portable Solder Fume Extractor
Description:
These soldering smoke purifier are small, save space,there’s four universal wheels on the bottom, it makes the movement easy and flexible. Ducts can be universal adjustment, suitable for all kinds of workstation. The air after purification meets PONY EIA test. Brand-new design 3 stage filtration filters absorb dust from four sides, greatly improve the dust capacity.Three fan speed adjustment, the maximum can reach 180-250m2/h airflow.
Technical Details:
| Model | XS-80 |
| Power | 80W |
| Noise | <55 dB |
| Systemic Flow | 180 m3/h |
| Air Velocity | 14 m/s |
| Filter Size | Pre-filter: 178 x 495 x 9mm; Middle filter: 193 x 193 x 197mm; Main filter: 238 x 238 x 198cm; |
| Gross Weight | 11kg |
| Cabinet Dimensions | 280 x 280 x 430mm |
| Package Dimensions | 45 x 38 x 52cm |
| Filtering Efficiency | 0.3um 99.97% |
| Electrical | 110V / 220V |
| Filter Layer | 3 Layers |
| Remote Control | Not Included |
| Arm Dimension | Diameter 65mm x Length 120cm |
| Packing List | Main Unit: 1 piece
Power Cord: 1 piece
Arm & nozzle: 1 set
Operation Instruction: 1 piece
Pre-Filter: 5pc (4pieces inside machine) Middle Filter: 1pc (Included in machine) Main Filter: 1pc (Included in machine) |
Product Features:
1. Cheap price version and high quality fume extractor;
2. Smaller size, but with larger filtering capacity;
3. With 3 layers filters combination,360℃ degree filtering design big dirt holding capacity;
4. New Diamond-shaped nozzle greatly increases the extraction area;
5. DC Brush-less motor, intelligent and energy-saving, with a life-span as long as 40K hours.
Applications:
Manual Soldering Fumes, Solder Pot Fumes, Soldering Robot Fumes, Laser Cutting Fumes, Laser Markings, Beauty Salon,Hair Salon, Moxibustion...
Additional Information:
| Available Filter Efficiencies | Pre Filter
For filter big particles of above 50 microns
Middle Filter
For particles above 0.3 microns, its filtering efficiency reaches 99.97%.
Main Filter
For filter dust particles above 0.3 microns, filtering efficiency reaches 99.97%,
For filtering hazardous gases, its filtering efficiency reaches above 95%; |
| Filter Replacement Period | Pr-Filter: 1 week to 1 month Middle Filter: 2-3 months Main Filter: 3-6 months However, it can be adjusted as per the exact pollutants generated in different Environment; |
Company Introduction:
Waterun Technology's fume extractory factory located in Dongguan China, we have been focusing on the purification of harmful fumes for 18 years. Now Waterun has become the leading manufacturer of fume extractors in China. Our products are widely used for eliminating Solder Fumes, Laser Fumes, Welding Fumes, Beauty Salon Fumes, Medical Fumes, 3D Printing Fumes, etc.
We own several brands: NEW OXYGEN, FUME GO, QUBO, etc.
Waterun makes really effective Fume Extractors only. Our superiority in technology and high quality has gained the leading position in the air purifying industry. The filtering efficiency of our Fume Extractors has reached the highest standard in the world.
Our Quality:

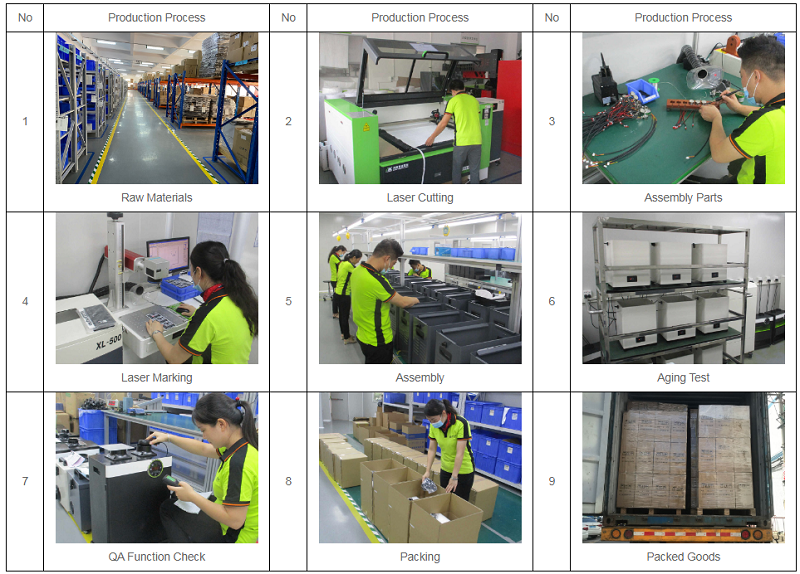

Our products go from design to production to final product. Each working procedure is strictly controlled, we make really effective fume extractors only. The filtering efficiency of our fume extractors has reached the highest standard in the world.
OEM & ODM Services:
We can offer OEM & ODM services. Welcome to talk with us in details.
