Lead Free Soldering Station SMD Soldering Iron Solder Feeding Machine
Product Detail:
Waterun-852
(P/N: W00225)
With digital display, easy to control the hot air temperature viausally.
Featuring airflow meter, easy tio control the airflow volume.
Automatic cooling function protects and extends the usage life of the system.
| Model | Waterun-852 |
| Power Consumption | 650W |
| Air Capacity | 24L/min(max) |
| Temperature Range | 100℃~480℃ |
| Air Pump Type | Diaphragm Pump |

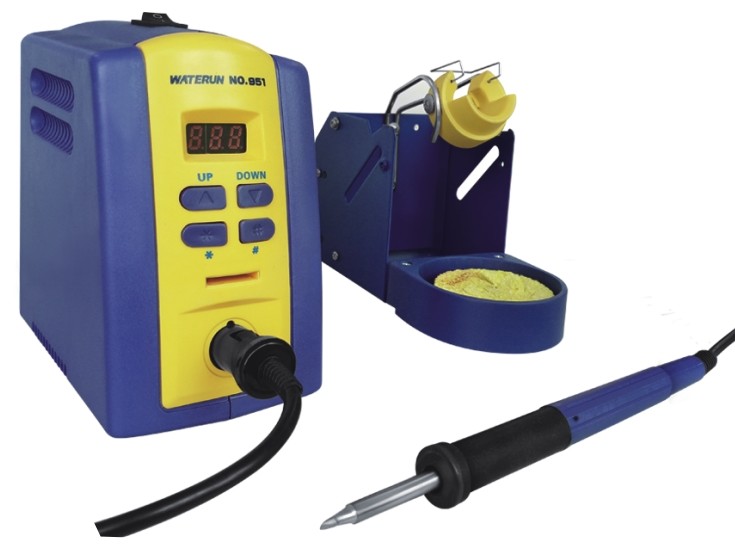

Waterun-951
(P/N: W00220)
Superior heat recovery; Digital display.
Temperature compensation; Low temperature alarm.
Composite tip of excellent thrmal recovery.
| Power Consumption | 75W |
| Outout Voltage | 24V AC |
| Dimensions(mm) | 80*130*131(W/H/D) |
| Temperature Range | 200℃~450℃ |
| Applicate Tips | T12 Series |
| Weight(w/o cord) | 1.2kg |
1. Excellent thermal recovery
2. Suitable for lead free soldering
3. Control Card can lock the temperature
4. Quick and easy offsetting of tip temperature by the digital offset function
5. Low temperature alarm function is provided
6. Auto Sleeping mode and Automatic Shut off when not use
7. ESD safe by design.
| Model | Waterun-951 |
| Temperature Range | 200°C- 450°C or 50°C- 500°C |
| Temperature Stability(no load) | ±5°C |
| Output Voltage | 24VAC |
| Max Power | 75W |
| Time of temperature rising(20°C- 350°C) | < 50 Sec |
| Heating Theory | Induction Heater |
| Tip to Ground Resistance | < 2Ω |
| Tip to Ground Potential | < 2mV |
| Auto Sleeping | Yes |
| Temperature- Lock Mode | Control card |
Waterun-203H
(P/N: W00218)
High frequency current heating element.
Fast heating and temperaure recovery.
Auto-idle prolongs the tip life, energy-saving.
| Max Power | 90W |
| Dimensions(mm) | 130*100*200(W/H/D) |
| Weight | 2.6kg |
| Temperature Range | 50℃~600℃ |
| Applicate Tips | 200 Series |
Waterun-375
(P/N: W00224)
Solder Feeding Machine
Effectively cut open the solder wire and improve the soldering quality.
Dimensions: 76(W)*96(H)*50(D)mm
Net Weight: 0.6kg
Different models are available to cut different solder wire diameter: 0.5,0.6, 0.8, 1.0, 1.2, 1.5, 1.6mm
