Automatic screw dispenser, automatic screw feeder machine never gets jammed with crews
Introduction:
1 . Can increase productivity significantly
It is unnecessary to target the screw cap, compared to screw plate, each screw can
save 1.4 seconds, productivity increased by 4 times!
2. Statistical function(partial models)
When the settings achieved, the machine will automatic alarm and cycle, it is very
clear to see with digital display panel.
3 . Automatic alarm function
When non--normal condition occurs, the machine can automatic alarm.
4 . The volume is exquisite, does not occupy the space.
Product Detail:

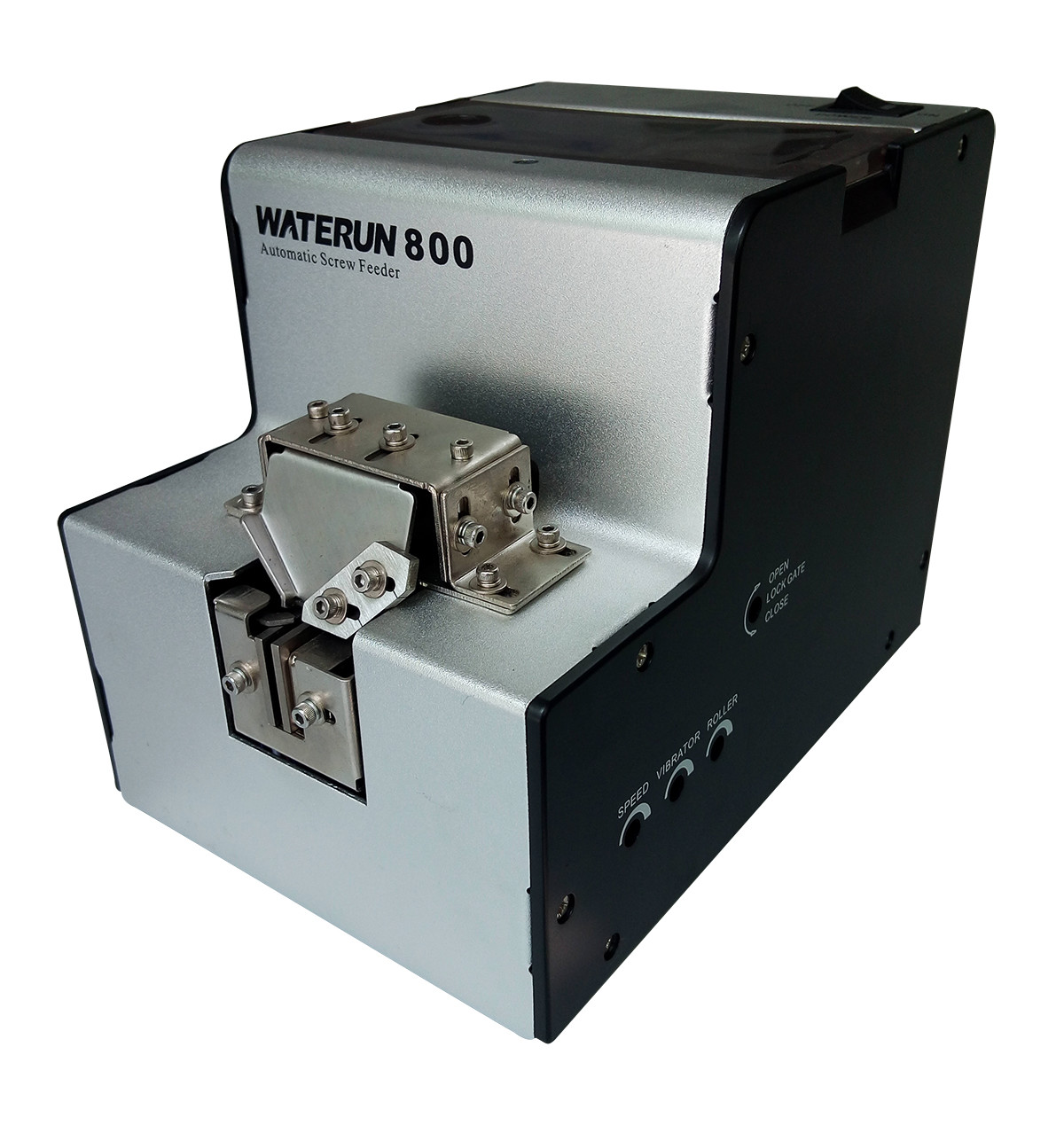

Waterun-800
1. Rail can be removed and adjustable;
2. One machine can be used for various screw sizes;
Waterun-800D
1. Screw counting function with LED display;
2. Increasing or decreasing counting selectable;
Technical Details
| Model | Waterun-800 | Waterun-800D |
| LED display | No | Yes |
| DC power supply | AC220V, DC12V 500MA, AC Adapter |
| Applicable screw length(under head) | Up to 20mm |
| Rail adjustment range | M1.0-M5.0 |
| Speed of picking up | 1.5 sec/piece |
| Product size | 180 x 125 x 150mm |
| Weight | About 3kg |
Features:
1 . Adjustable for a wide range.
The track can adjust freely to suit many kinds of types screws, like M1.0--M5.0 O standard screw(1.0 1.2 1.4 1.7 2.0 2.3 2.6 3.0 3.5 4.0 5.0), special screw, 1:1 short screw, filling piece screw and so on.
2.Running smoothly.
The screw s movement and roll down inside the bucket, all the screws will be cleared if
not enter the rail and enter the n ext circle, screws will never be blocked, the check point
will not vibrate.
3.Working speed adjustable
Feeding system and drive system independent control, set the time delay freely to adjust
the feed speed, suits many kinds of works
4 . Simple operation
Even novices can operate freely, whether metric specifications or british specifications,
all easily to understand.
Speed adjustment :
1. Characteristics of motor speed:
The connection between motors peed and rail speed.
2. Roller delay adjustment:
when the screw is large or not conducive to access to rail, increase the roIeer delay, in cent rast reduce it
3. Guide vibration delay adjustment:
The same, when the screw is targe or not conducive to access to rail, increase the roller delay in contrast reduce it.
