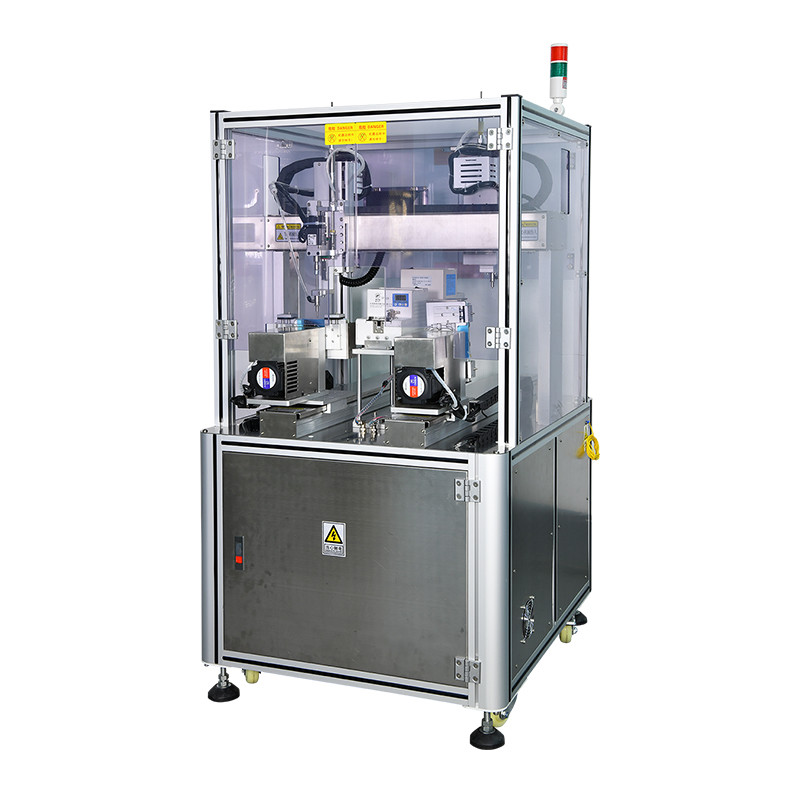

Customized Multi-functions High Speed OperationScrew Locking Machine
Application:
Production lines for keyboards, toys, power strips, lighting, mobile phones, computers, telephones, calculators, cases, chargers, various small household appliances and small objects, etc.
Product application areas include electronics industry,toy industry, home appliance industry, and Communications industry.
Features:
1. Permanent magnetic suction (vacuum suction), to achieve fast feeding and screwing.
2. The operator can use manual positioning to do the programming. It is highly efficient and very easy to learn the operation.
3. With alarm function for fastening missing, untightened screws, worn thread, etc.
4. Support auto sensing start operation function.
5. With the fixed work table, the working position can be adjusted flexibly.
Product Description:
Referenced Specification:
| Model | WT7024-2Z |
| Remark | 5 axis |
| X axis | 240mm |
| Y1/Y2 axis | 700mm |
| Z axis | 135mm |
| repeatability accuracy | ±0.02mm |
| | M1.5 – M4 (total screw length ≤ 20mm) |
| Z speed | ≤300mm/s |
| XY speed | ≤500mm/s |
| Working efficiency | 1.0~1.5s/piece |
| Power supply | AC220V 10A 50-60Hz |
| Input air pressure | 0.4~0.6MPa |
| Program capacity | 15files (99 points/program file) |
| Outer dimension (L*W*H) | 1100 x 800 x 1620mm |
| Weight | 120KG |
Competitive Advantage:
We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc.Waterun owns two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
