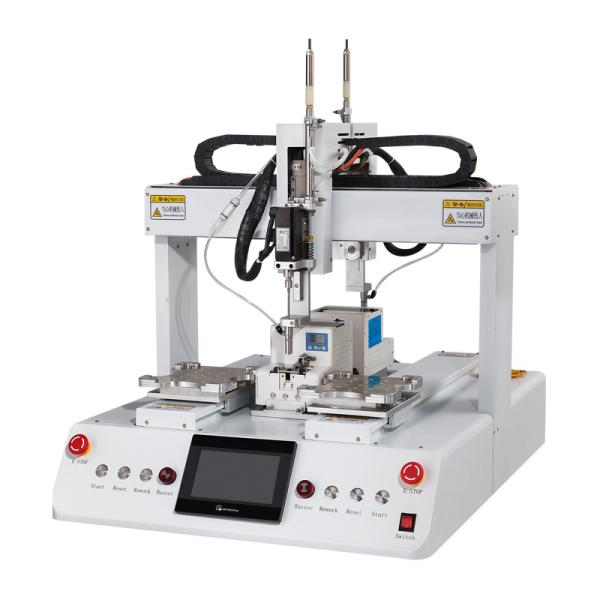

Screw locking industry robot for electronic and technology products multi drilling machine
Features:
1. Wide universality, small in size, can cooperate with production line, convenient for product replacement.
2. With intelligent inspection function, inspection miss locked, unstable locked, loose screw and so on.
3. The Y axis can be made into double-station(that is, double Y axis), so the operator can load alternately.
4. High degree of automation, easy operation which the staff can master and debug quickly.
5. Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.
6. Touch screen display or teach pendant programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management.
7. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.
Application:
Specification:
| Type | SF-5021-2Z |
| Locking screw range | X190*Y1/600/Y2/600*Z130mm(X*Y*Y*Z) |
| Screw time | 2~3seconds/grain |
| Repeat accuracy | ±0.02mm |
| Program record mode | 100 sets of 100 points each |
| Control system | MCU+Touch screen control system |
| Input power | 200V/50HZ |
| Air source | 0.4-0.6MPA |
| Edit mode | Teaching mode |
| Working temperature | 5-40℃ |
| Working humidity | 20-90% |
| Applicable screw size | M1.5-M4(screw length not exceed 16mm) |
| Dimension | 960*730*900mm |
| Weight | 100kg |
Competitive Advantage:
We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc. Waterun owns two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
Product Tags:
|
|
Industrial Automatic Screw Fastening Machine Multiscene For Electronic Images
|
