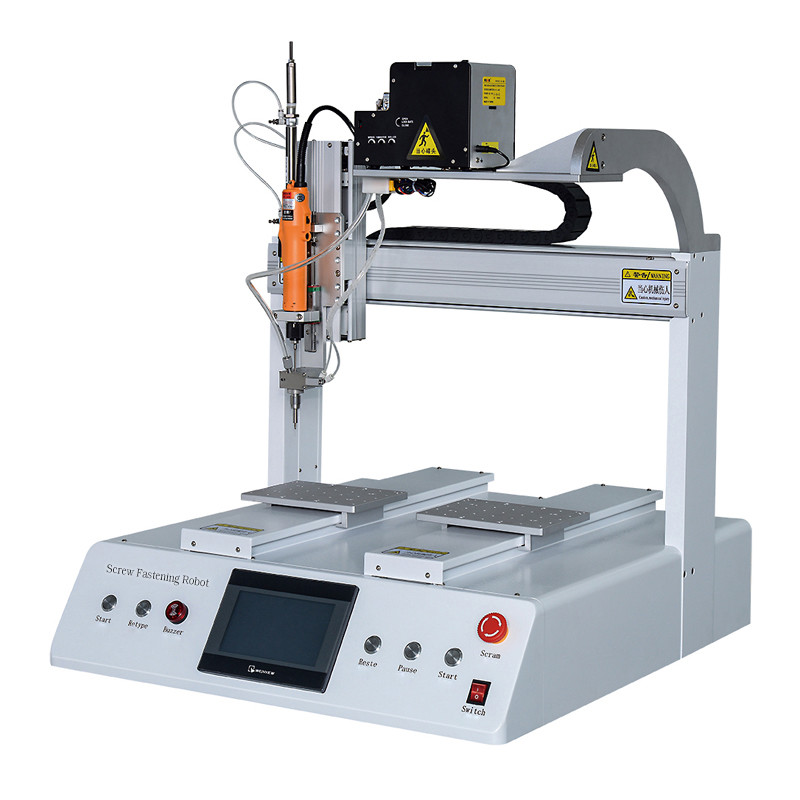

Automatic Desktop Screw Fastening Robot Durable For Screw Locking

Name: Automatic Desktop Screw Fastening Robot Durable For Screw Locking
Brand: Waterun
Price: 3800 USD

Buy cheap Automatic Desktop Screw Fastening Robot Durable For Screw Locking product

Brand Name : Waterun

Model Number : WT4223-2Y

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD3800 ~ 6000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card

Supply Ability : 300 units per month

Delivery Time : 3-10 days

Operating Range : X230*Y1/420/Y2/420*Z135mm

Accuracy : ±0.03mm

Screwing Time : 0.8~1.25s/piece

Working temperature : 5-40℃

Dimensions(mm) : 810 x 720 x 900mm

Weight : 80kg

Contact Now

Locking Screwdriver Factory direct supplier Dual desktop Auto Fastening Robot

Description:

Double Y-axis automatic Screw Robot is a kind of newly designed popular machine which is quite easy to learn and operate by the teach pendant. With the interpolation function, all the axes can support for automatic locking screw control of gantry structure with two worktables. With the quite powerful software, the machine is quite easy to operate, one can learn and make program is a few minutes.

Features:

With the intelligent detection function, can detect lock leakage, floating lock, sliding teeth, etc..
Precise torque, conveniently adjustment, ensure the locking quality
Strong versatility, replace the screw conveying module can adapt to M1.0-M6 screws.
Small size, can cooperate with production line operation, reduce the labor intensity of workers.
High degree of automation, employees could quickly master the operation and debugging, one person can manage multiple machines at the same time.
Simple operation and setting, conveniently replacement of products.

Automatic Desktop Screw Fastening Robot Durable For Screw Locking

Specification:

Type	WT-4223-2Y
Locking screw range	X230Y1/420/Y2/420Z135mm(XYY*Z)
Screw time	0.8~1.2s/pcs
Repeat accuracy	±0.03mm
Program capacity	15files, each file can save up 99points
Control system	SCM+Touch screen
Input power	200V/50HZ
Air source	0.4-0.6MPA
Edit mode	Teaching mode
Working temperature	5-40℃
Working humidity	20-90%
Applicable screw size	M1.5-M4(total length not exceed 16mm)
Dimension	810720900mm
Weight	80kg

Competitive Advantage:

Automatic Desktop Screw Fastening Robot Durable For Screw Locking

Automatic Desktop Screw Fastening Robot Durable For Screw Locking

We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc.Waterun owns two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
