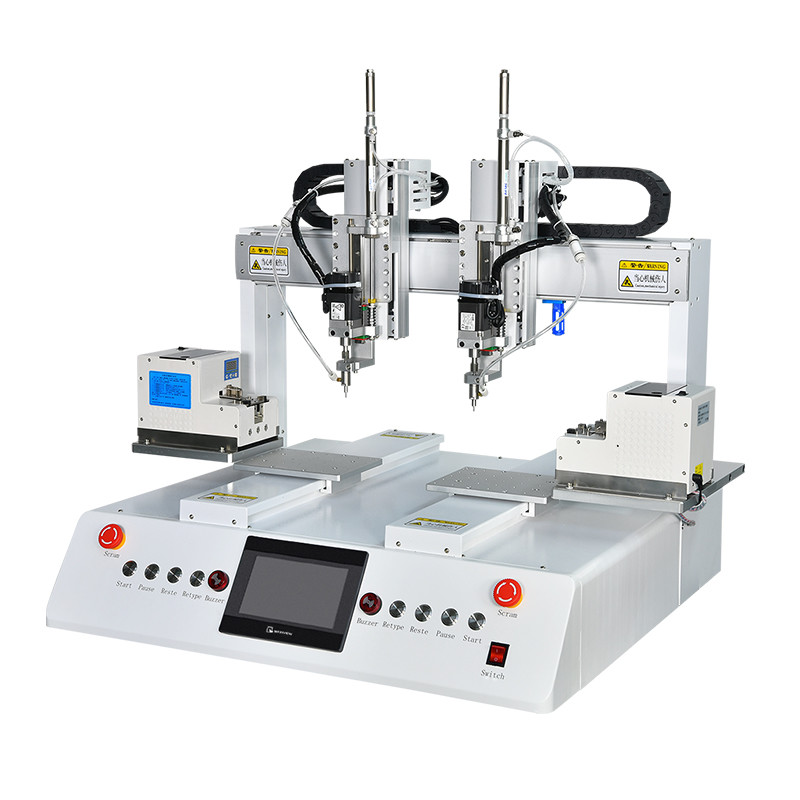

Vacuum suction type, locking tightening machine with screwdriver
Description:
The automatic screw machine is a machine that replaces the traditional manual tightening of screws. It has continuous feeding, constant torque, optional counting function, anti-leakage function, screw sliding and floating lock detection, which saves labor costs and improves production assembly efficiency. Commonly used in the electronics and machinery industries.
Features:
1)High efficiency: multiple axis lock at the same time, 10 screws can be locked in one screw’s period, saving lots of artificial, suitable for mass production.
2)High locking standard: all screws are locked in one torque at the same time, making sure of the sealing and balance of the product, greatly increase the qualified rate of products.
3)Deep hole locking: the locking of deep hole screw has inconvenience in observing the hole site, so artificial locking has low efficiency, while multi-axis screw locking machine locates and locks screws accurately.
Specification:
Operating range: X200 * Y1/Y2/420 * Z135mm(Double Z)
Applicable screw specification: All
Repeatability accuracy: ±0.03mm
Screwing time for each screw: 1.0~1.5s/piece
Suitable screw size: M1.0 – M4 (total screw length ≤ 16mm)
Control system: SCM + Touch Screen
Program capacity: 15 files, each file can save up to 99 points
Air source: 0.4 -0.6 Mpa
Dimensions: 970 x 820 x 900mm
Weight: 100 kg
Competitive Advantage:
We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc.Waterun owns two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
